14ET-83" x 20 Tandem Axle Equipment Trailer
VIN: 045107
Call for Quote
(800) 239-3646Oneonta, AL
The 14ET Super Duty Tandem Axle Equipment Trailer from Big Tex has an 83-inch width, multiple length options and a flush floor, providing versatility and exceptional value. 7,000-pound axles give the 14ET added weight capacity for unmatched durability and strength.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

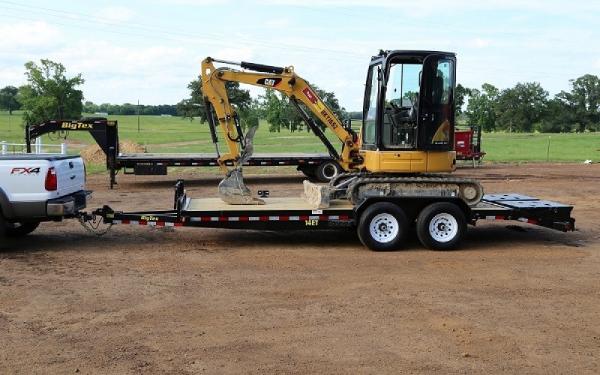

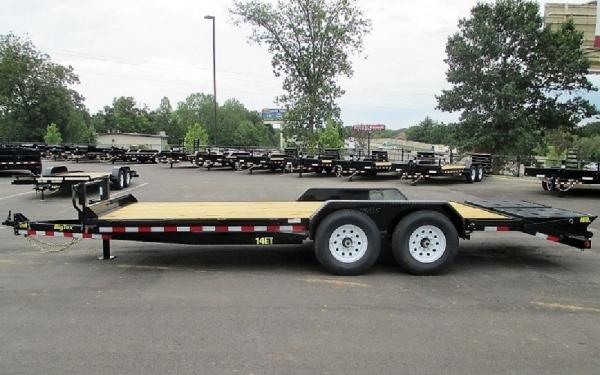

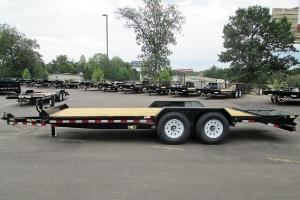

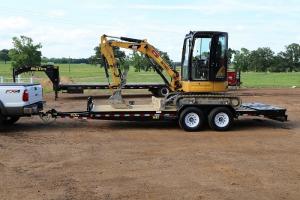

14ET-83" x 20 Tandem Axle Equipment Trailer
Big Tex 14ET Heavy Duty Equipment Trailer
The 14ET Tandem Axle Equipment Trailer has length options and flush floor that provide versatility to haul light to medium duty equipment and small tractors
Structural Details:
•Beefy 6'' Channel Frame
•3'' Channel Crossmembers on 16'' Centers
•6'' Channel Fold Back Tongue
•2'' Tubular Stop Rail
•32'' Wooden Dovetail
•Diamond Plate Fenders (Removable)
•Rubrail & Tie Down Pockets
•3-Year Structural Warranty
•Choice of Ramp Configurations
•5' Stand up Ramps w/ Adj. Support Legs
•5' Rear Slide In Ramps
•4' Side Mount Slide In Ramps
•3' Stand-Up Ramps w/ Adj. Support Legs and Self Cleaning Dovetail
Where the Rubber Meets the Road:
•Premium Dexter EZ Lube Cambered 7,000# Axles
•Nev-R-Adjust Electric Brakes On All Four Hubs
•ST 235/80 R16 Radial Tires
•Complete Break-A-Way System w/Charger
More Standard Features:
•5-Position Adjustable Coupler
•12,000# Drop Leg Jack w/ Sand Foot
•Sealed Modular Wiring Harness
•All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape
•Spare Tire Mount
•2'' Treated Pine or Douglas Fir Wood Floors (#2 or Better)
•Safety Chains Attached w/Cold Rolled Eyelets
•Bead Blasted & Acid Etched Prep
•Automotive Grade Primer and Top Coat
Available Lengths:
•16'
•18'
•20'
Optional Add-Ons:
•Diamond Plate Floor
•Mega Ramps with 3' Self Cleaning Dovetail
•Pintle Ring
•Spare Tire
•Tire Upgrade
- Availability:
- In Stock
- Axle Config:
- Tandem
- Max Payload:
- 11060 lbs.
- External Width:
- 83"
- External Length:
- 20'
- Weight:
- 2940
- Hitch Type:
- Bumper Pull
- Category:
- Equipment Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Mega Ramp
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 11060
Features/Specifications
Features
| Axle | (2) 7,000# Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 12,000# Drop Leg Jack-Side Wind |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 6" Channel |
| Wheel | 16" x 6"; Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel Fold Back/Wrap, 10" I-Beam on GN |
| Coupler | Adjustable 2-5/16" 14,000# Cast |
| Fenders | 9" x 72" Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 14,000# |
|---|---|
| Uprights | NONE |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel on 16" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14ET Heavy Duty Tandem Axle Equipment Trailer
| Model | Description |
|---|---|
| 14ET-16 | 83" x 16' Tandem Axle Equipment Trailer |
| 14ET-18 | 83" x 18' Tandem Axle Equipment Trailer |
| 14ET-20 | 83" x 20' Tandem Axle Equipment Trailer |
| 14ET-20GN | 83" x 20' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-22GN | 83" x 22' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-24GN | 83" x 24' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-22 | 83” x 22’ Tandem Axle Equipment Trailer |
| 14ET-18KR |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2' | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138" | 102" |
| 20' GN | 240" | 138" | 102" |
| 22' GN | 264" | 153" | 111" |
| 24' GN | |||
| 22' | |||
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 2,540# | 11,460# | N/A |
| 18' | 2,740# | 11,260# | N/A |
| 20' | 2,940# | 11,060# | N/A |
| 20' GN | 3,740# | 10,260# | N/A |
| 22' GN | 3,940# | 10,060# | N/A |
| 24' GN | 4,140# | 9,860# | N/A |
| 22' | 3,140# | 10,860# | N/A |
| 0# | 14,000# | N/A |
Standard/Optional Equipment
Standard Equipment
- Rubrail and Tie Down Pockets Along Sides
- 36" Cleated Dovetail
- 4 Tall Channel Knee Ramps
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack- Side Wind Against Bed
- Fabricated Front Stop Rail
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Double Broke Diamond Plate Fenders (Removable)
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount (Front)
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- (6) D-Rings to Secure Equipment
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 3 Blackwood Pro DT w/ 5 Super Wide Ramps |
| RAMPS | 3 Cleated Dovetail w/ 3 Mega Ramps |
| RAMPS | 32" Wood Filled Dovetail in Excisting Length w/5 Stand Up Ramps |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
