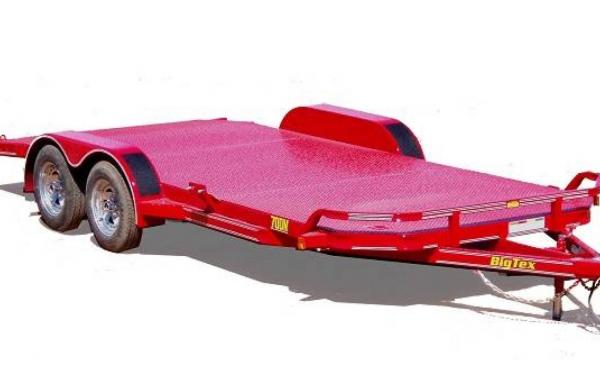

Big Tex 70DM Diamond Back Car Hauler
Call for Quote
(800) 239-3646Oneonta, AL
Our top-of-the-line, premier car hauler, the 70DM Diamond Back Car Hauler delivers the hauling capabilities you demand with the eye-catching looks youve always wanted. Aluminum wheels, steel floor, and diamond-plate rear slide-out ramps make the 70DM both easy to use and easy to look at. Plus, its box tubing frame gives the trailer added strength and durability. With both looks and hauling prowess, the 70DM is the best of both worlds.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 70DM Diamond Back Car Hauler
70DM-18RD
Specs:
- G.A.W.R. (Ea. Axle) 3,500#
- Coupler 7K 2" Forged Coupler
- Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
- Jack 2K Fold-Up
- Tongue 4" x 2" x .188" Rectangular Tubing
- Top Rail None
- Frame 4" x 2" x .188" Rectangular Tubing
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights None
- Fenders 9" x 72" Tear Drop w/Back (Bolted On)
- Axles Two 3,500# EZ Lube w/1 Elec. Brake
- Suspension Multi-Leaf Spring
- Tire ST205/75-15 Load Range C
- Wheel 15 x 6 Chrome Mod 5 Bolt
- Floor 1/8" Diamond Plate
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 7-Way RV
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Forged Coupler
- Safety Chains Attached w/Cold Rolled Eyelets
- Fold-Up Jack
- Fold Back Tongue
- Chamfered Front w/Stop Rail
- 1/8" Diamond Plate Floor w/Four Recessed D-Rings
- Cambered EZ Lube Axles w/1 Electric Brake
- Complete Break-A-Way System
- Chrome Wheels w/Chrome Caps & Lugnuts
- Spare Tire Mount
- Dovetail
- 5' Long x 20" Wide Diamond Plate Ramps Slide-In from Rear
- Grommet Mount Sealed LED Lighting
- Availability:
- In Stock
- Axle Config:
- Tandem
- Max Payload:
- 4860 lbs.
- External Width:
- 83"
- External Length:
- 18'
- Hitch Type:
- Bumper Pull
- Category:
- Car/Auto Haulers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- GVWR:
- 7000
- Capacity:
- 4860
Features/Specifications
Features
| Axle | (2) 3,500# Quick Lubricaing w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Front Wind, Set-Back Jack (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 1/8" Diamond Plate |
| Frame | 4" x 2" x .188" Rectangular Tubing |
| Wheel | 15", 5-5 Bolt Pattern w/Alum Wheels |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" x 2" x .188" Rectangular Tubing |
| Coupler | Adjustable 7,000#, 2" Forged Coupler |
| Fenders | 9" x 72" Tear Drop w/ Back (Bolted On) |
| G.V.W.R. | 7,000# |
|---|---|
| Uprights | None |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 70DM Diamond Back Car Hauler
| Model | Description |
|---|---|
| 70DM-18 | 83" x 18' Tandem Axle Premium Car Hauler |
| 70DM-20 | 83" x 20' Tandem Axle Premium Car Hauler |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 18' | 217-1/2" | 132" | 85-1/2" |
| 20' | 240" | 150" | 90" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 18' | 2,140# | 4,860# | N/A |
| 20' | 2,320# | 4,680# | N/A |
Standard/Optional Equipment
Standard Equipment
- Stake Pockets Along Sides
- Adjustable, Forged, 7,000# Coupler
- Fold Back/Wrap Tongue
- 2,000# Front Wind, Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Chambered Front w/ Formed 2" Stop Rail
- Fabricated Front Stop Rail
- 1/8" Diamond Plate Floor w/ (4) Recessed D-Rings
- Integrated Dovetail
- 5 x 20" Formed Diamond Plate Rear Slide-In Ramps
- Removable Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Complete Break-A-Way System w/ Charger
- Spare Tire Mount-Standard Equipped
- Chrome Wheels w/ Chrome Caps & Lugnuts
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | Front Rockshield (Aluminum Tread Brite) |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | A-Frame Tongue Box (Aluminum Tread Brite) |
| CARGO CONTROL | A-Frame Tongue Box (Steel) |
| CARGO CONTROL | Additional Recessed D-Rings in Floor |
| CARGO CONTROL | Additional Stake Pockets |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C, Chrome Mod) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D, Chrome Mod) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-C, Chrome Mod) |
