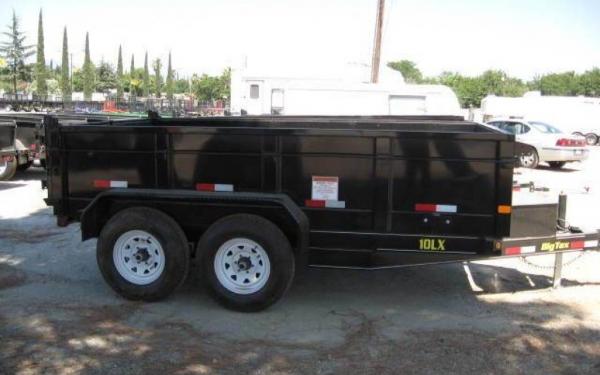

10' Big Tex Dump Trailer

Call for Quote

(800) 239-3646

Oneonta, AL

Need an extra-wide trailer for medium loads and larger equipment? Then the 10LX Pro Series Tandem Axle Extra Wide Dump Trailer is for you. A medium-duty dump trailer, the 10LX comes with an 83 wide bed, giving you extra cargo width for bigger loads. Plus, its equipped with a self-contained electric and hydraulic scissor hoist thats purpose-built to make dumping and spreading agregates (such as sand, gravel, crushed stone, and slag) an easier task than ever before.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

10' Big Tex Dump Trailer

10LX-10BK7SIR

Specs:

  • G.A.W.R. (Ea. Axle) 5,200lbs
  • 2-5/16" Adjustable Forged Coupler
  • 1/4" Grd. 70Safety Chains w/Safety Latch Hook (2 each)
  • 7K TW Drop Leg Jacks(Bolted On)
  • 6" Channel Tongue
  • 6" x 2" Rectangular Tubing Frame
  • 4" 13lb I-Beam Crossmembers
  • 3" Channel Bed Crossmembers
  • 3" Channel Bed Long Sils
  • 6-1/2" Formed Angle Bed Side Rails
  • Double Square Broke Diamond Plate Fenders
  • Two 5,200# EZ Lube Axles w/Elec. Brakes
  • Multi-Leaf Slipper Spring Suspension w/Equalizer
  • ST235/80 D-16 Load Range E Tires
  • 16 x 6 HD White Spoke 6 Bolt Wheel
  • 10 Gauge Smooth Steel Floor
  • D.O.T Stop, Tail, Turn & Clearance LED lights
  • 7-Way RV Elec. Plug
  • Steel is Cleaned to Ensure a Professional Smooth Finish.
  • Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

Standard Features:

  • Safety Chains Attached w/Cold Rolled Eyelets
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • Modular Sealed Wiring Harness
  • 24", 12 Ga. Sides w/Formed Channel Supports
  • Modular Sealed Wiring Harness
  • 10 Ga. Floor
  • J-Hooks for Tie Downs
  • Stake Pockets
  • Fully Formed Shroud for Tarp
  • 4-5/8" D-Rings Inside Bed
  • Fully Self Contained Electric Hydraulic Scissor Lift
  • 45 Degree Dump Angle
  • Spare Tire Mount
  • Cambered EZ Lube Axles w/Electric Brakes
  • Complete Break-A-Way System w/Charge Line
  • Grommet Mount Sealed LED Lighting
  • Combo Gate
  • Hoist Comparison

Axle Config:
Tandem
Max Payload:
6830 lbs.
External Width:
83"
External Length:
10'
Hitch Type:
Bumper Pull
Category:
Dump Trailers
Year:
2018
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Color:
Black
GVWR:
9990
Capacity:
6830

Features/Specifications

Features

Axle (2) 5,200# Quick Lubricating w/Elec. Brakes
Jack 8,000# Top Wind Drop Leg
Tire ST235/80 R-16 Load Range E
Floor 10 Gauge Smooth Steel
Frame 6" x 2" Rectangular Tubing
Wheel 16" x 6"; Black Mod 6 Bolt
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tongue 6" Channel
Coupler 2-5/16" Adjustable Forged
Fenders 9" x 72" 14 Ga. Diamond Plate Double Square Broke
G.V.W.R. 9,990#
Elec. Plug 7-Way RV
Hitch Type Bumper Pull
Suspension Multi-Leaf Spring w/Equalizer
Crossmembers 8 Channel
Bed Long Sils 3" Channel
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
Bed Side Rails 6 1/2" Formed Angle
Bed Crossmembers 3" Channel, 16" Centers
G.A.W.R. (Ea. Axle) 5,200#

Specifications

Pro Series Tandem Axle Extra Wide Dump Trailer

Big Tex 10LX Pro Series Tandem Axle Extra Wide Dump Trailer

Model Description
10LX-12 83" x 12' Pro Series Tandem Axle Dump
10LX-10 83” x 10’ Pro Series Tandem Axle Dump

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
12' 3,500# 6,490# 6.1 Cubic Yards
10' 3,160# 6,830# N/A

Standard/Optional Equipment

Standard Equipment

  • Adjustable 2-5/16" Forged Coupler
  • 8,000# Top Wind Drop Leg Jack
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 24" Tall, 12 Gauge Sides w/Formed Channel Supports
  • 10 Gauge Steel Floor
  • Tarp Mounting Brackets on Front of Bed
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electric/Hydraulic Scissor Hoist
  • Power Up/Gravity Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger (5 Amp)
  • Premium Brand Axles
  • Cambered Axles w/Quick Lubricating Hubs
  • Forward Self Adjusting Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Complete Break-A-Way System
  • Diamond Plate Fenders
  • 2" Square Tubing Top Rail on Dump Bed
  • Combo Gate (Barn Doors & Spreader Gate)
  • (4) 1/2" D-Rings Inside Bed to Secure Equipment
  • Spare Tire Mount
  • Radial Tires

Optional Equipment

Category Description
BODY 24" Expanded Metal Side Extensions
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
CARGO CONTROL Crank Style Roll Tarp
COUPLER Adjustable Pintle in Channel ILO Coupler
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 6.5 Slide In Ramp Package
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
