18' Big Tex Equipment Trailer
Call for Quote
(800) 239-3646Oneonta, AL
The 14ET Super Duty Tandem Axle Equipment Trailer from Big Tex has an 83-inch width, multiple length options and a flush floor, providing versatility and exceptional value. 7,000-pound axles give the 14ET added weight capacity for unmatched durability and strength.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

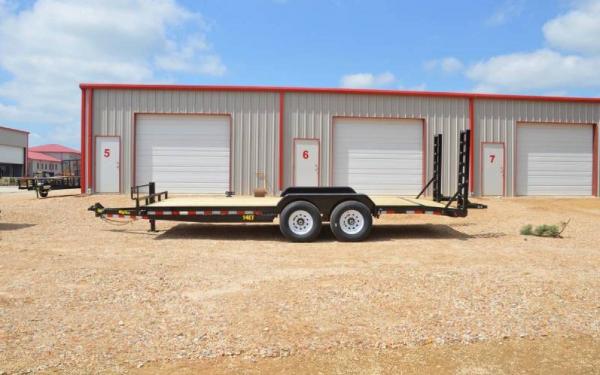

18' Big Tex Equipment Trailer
14ET-18BK
Specs:
- G.A.W.R. (Ea. Axle) 7,000#
- Adjustable Cast 2-5/16" Coupler
- 3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
- 12k SW against the bed standard jack
- 6" Channel Fold Back Tongue
- 6" Channel Frame
- 3" Channel on 16" Centers Crossmembers
- 9" x 72" Diamond Plate w/Back (Removable) Fenders
- Two 7,000# EZ Lube Axles w/Electric Brakes
- Multi-Leaf Spring w/Equalizer Suspension
- ST235/16 Load Range E Tire
- 16 x 6 Radial Heavy White Mod 8 Bolt Wheel
- 2" Pine Floor
- D.O.T. Stop, Tail, Turn & Clearance Lights
- 7-Way RV Electric Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Adjustable Cast Coupler
- Safety Chains Attchd w/Cold Rolled Eyelets
- 7K Top Wind Drop Leg Jack
- Fold Back Tongue
- 2" Tubular Stop Rail
- Tie Down Pockets
- Floor Secured w/Torx Screws
- Reflective Marker Tape
- Cambered EZ Lube Axles
- Two 7,000# Axles w/Electric Brakes
- Complete Break-A-Way System w/Charger
- Spare Mount
- 32" Dovetail
- 5' Stand Up Ramps w/Adj. Support Legs
- Availability:
- Order In
- Axle Config:
- Tandem
- External Width:
- 83"
- Hitch Type:
- Bumper Pull
- Category:
- Equipment Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- 5' Fold Up Ramps
- Color:
- Black
- GVWR:
- 14000
Features/Specifications
Features
| Axle | (2) 7,000# Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 12,000# Drop Leg Jack-Side Wind |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 6" Channel |
| Wheel | 16" x 6"; Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel Fold Back/Wrap, 10" I-Beam on GN |
| Coupler | Adjustable 2-5/16" 14,000# Cast |
| Fenders | 9" x 72" Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 14,000# |
|---|---|
| Uprights | NONE |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel on 16" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14ET Heavy Duty Tandem Axle Equipment Trailer
| Model | Description |
|---|---|
| 14ET-16 | 83" x 16' Tandem Axle Equipment Trailer |
| 14ET-18 | 83" x 18' Tandem Axle Equipment Trailer |
| 14ET-20 | 83" x 20' Tandem Axle Equipment Trailer |
| 14ET-20GN | 83" x 20' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-22GN | 83" x 22' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-24GN | 83" x 24' Tandem Axle Equipment Trailer - Gooseneck |
| 14ET-22 | 83” x 22’ Tandem Axle Equipment Trailer |
| 14ET-18KR |

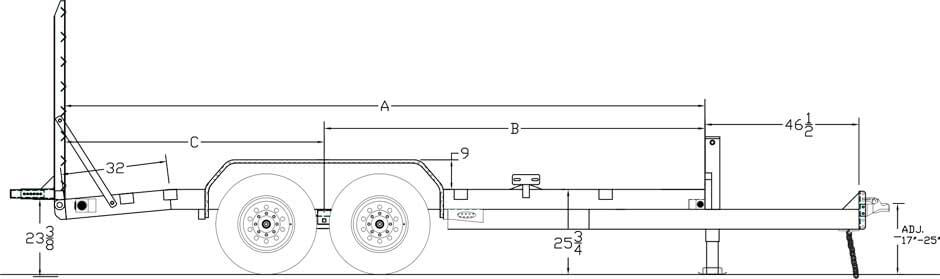

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2' | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138" | 102" |
| 20' GN | 240" | 138" | 102" |
| 22' GN | 264" | 153" | 111" |
| 24' GN | |||
| 22' | |||
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 2,540# | 11,460# | N/A |
| 18' | 2,740# | 11,260# | N/A |
| 20' | 2,940# | 11,060# | N/A |
| 20' GN | 3,740# | 10,260# | N/A |
| 22' GN | 3,940# | 10,060# | N/A |
| 24' GN | 4,140# | 9,860# | N/A |
| 22' | 3,140# | 10,860# | N/A |
| 0# | 14,000# | N/A |
Standard/Optional Equipment
Standard Equipment
- Rubrail and Tie Down Pockets Along Sides
- 36" Cleated Dovetail
- 4 Tall Channel Knee Ramps
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack- Side Wind Against Bed
- Fabricated Front Stop Rail
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Double Broke Diamond Plate Fenders (Removable)
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount (Front)
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- (6) D-Rings to Secure Equipment
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 3 Blackwood Pro DT w/ 5 Super Wide Ramps |
| RAMPS | 3 Cleated Dovetail w/ 3 Mega Ramps |
| RAMPS | 32" Wood Filled Dovetail in Excisting Length w/5 Stand Up Ramps |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
