20ft Heavy Duty Tilt Bed Equipment Hauler
Call for Quote
(800) 239-3646Oneonta, AL

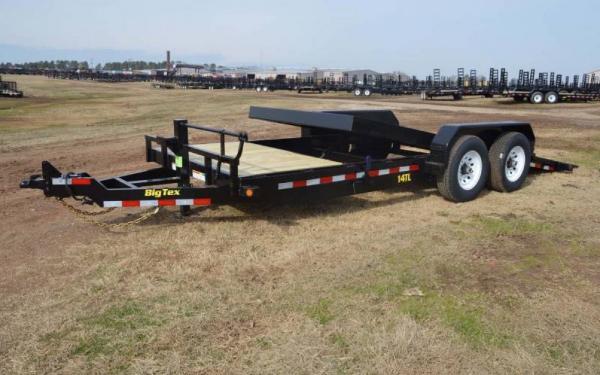

With a little bit of everything to keep you rolling on your equipment hauling tasks, the 14TL Heavy Duty Tilt Bed Equipment Trailer features a rear tilt deck as well as a stationary front deck. You can stay in control of your equipment with a hydraulic dampening system with a control valve for smooth loading and unloading. And with a fabricated front stop rail and expanded cargo space, you can use every inch of your bed for maximum hauling efficiency. Get ready for a new level of productivity.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
20ft Heavy Duty Tilt Bed Equipment Hauler
pecs:
- G.V.W.R. 14,000lbs
- G.A.W.R. (Ea. Axle) 7,000lbs
- 14K Adjustable Forged 2-5/16" Coupler
- 3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
- 12K Drop Leg Jack Against Bed -Side Wind
- 6" Channel Fold Back Tongue
- 6" Channel Frame
- 3" Channel
- 9" x 72" Double Square Brake Diamond Plate Fenders
- Two 7,000lb EZ Lube Axles w/Electric Brakes
- Multi-Leaf Spring w/Equalizer Suspension
- ST235/85 R-16 Load Range E Tires
- 16 x 6 Radial Heavy White Mod 8 Bolt Wheel
- 2" Pine Floor
- D.O.T. Stop, Tail, Turn & Clearance Lights
- 7-Way RV Elec. Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 10540 lbs.
- External Height:
- 21.5"
- External Width:
- 83"
- External Length:
- 20'
- Hitch Type:
- Bumper Pull
- Category:
- Tilt Trailers
- Year:
- 2016
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 10540
Features/Specifications
Features
| Axle | (2) 7,000#, 4" Drop Quick Lubricating w/Electric Brakes |
|---|---|
| Jack | 12,000# Drop Leg Jack-Side Wind |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 6" Channel |
| Wheel | 16" x 6"; Heavy Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel Fold Back/Wrap Tongue |
| Coupler | Adjustable 2-5/16" 18,000# Demco EZ Latch |
| Fenders | 9" x 72" Double Square Brake Diamond Plate (Removable) |
| Uprights | NONE |
|---|---|
| G.V.W.R. | 14,000# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Slipper Spring w/Equalizer |
| Crossmembers | 3" Channel on 16" Centers |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14TL Heavy Duty Tilt Bed Equipment Trailer
| Model | Description |
|---|---|
| 14TL-20 | 83" x 20' (16' + 4') Heavy Duty Tilt Bed Trailer |
| 14TL-22 | 83" x 22' (16' + 6') Heavy Duty Tilt Bed Trailer |
| 14TL-20GN | 83” x 20’ (16’ + 4’) Heavy Duty Gooseneck Tilt Bed Trailer |
| 14TL-22GN | 83” x 22’ (16’ + 6’) Heavy Duty Gooseneck Tilt Bed Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20' | 249-1/2" | 130-1/2" | 119" |
| 22' | 273-1/2" | 154-1/2" | 119" |
| 16'+4' | |||
| 16’ + 6’ |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20' | 3,460# | 10,540# | N/A |
| 22' | 3,660# | 10,340# | N/A |
| 16'+4' | 3,460# | 10,540# | N/A |
| 16’ + 6’ | 3,660# | 10,340# | N/A |
Standard/Optional Equipment
Standard Equipment
- Rubrail and Stake Pockets Along Sides
- (6) D-Rings to Secure Equipment
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Fold Back/Wrap Tongue w/ Raised Coupler
- 12,000# Drop Leg Jack- Side Wind Against Bed
- Fabricated Stop Rail
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered 4" Drop Axles
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- 14 Ga. Double Square Broke Diamond Plate Fenders (Removable)
- Single-Side, EZ Pedal Locking Mechanism
- Stationary Front Deck for Added Versatility
- Unique Two Piece Main Frame
- Full 83" Wide Bed Between Fenders
- Tilt Platform is 75" Wide
- Hydraulic Dampening Cylinder w/ Valve Control
- 1/4 Diamond Plate Knife Edge on Rear
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount (Front)
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Blackwood Pro- Outer Deck Only |
| CARGO CONTROL | B40 5/8" D-Ring |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
